ARRI/ZEISS and ZEISS Lenses
A perfect combination of camera and lens.
Produkte
Revolutionary new technology.

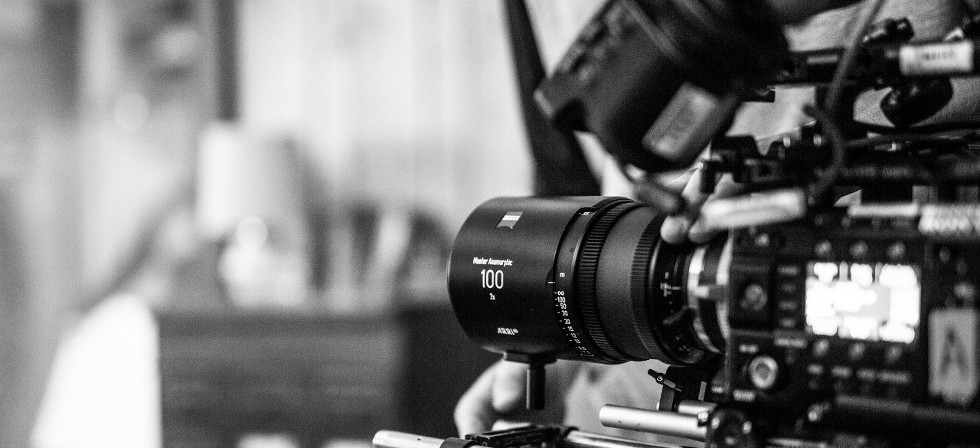

The ARRI / ZEISS Master Anamorphic Lenses have been jointly developed by ARRI andZEISS. The anamorphic lenses offer a unique optical performance, with optimized flare and bokeh as well as state-of-the-art lens barrels featuring improved dust and water protection.
The ARRI / ZEISS Master Anamorphic Lenses open up new creative opportunities, making shots possible that would have been considered impossible before. The important and distinguishing visual facet of anamorphic images, the appearance of out-of-focus background elements or bokeh, will be created by the newly developed iris with 15 aperture blades, creating perfectly oval and evenly illuminated out-of-focus highlights. This ensures a pleasing bokeh that filmmakers will enjoy manipulating creatively.
| Master Anamorphic | Aperture | Close Focus1 | Length2 | Front diameter | Weight | AOV3 |
|---|---|---|---|---|---|---|
| MA 28 mm/T1.9 | T1.9 to T22 |
0.65 m / 2'3" |
183 mm / 7.2" |
114 mm / 4.5" |
2.5 kg / 5.5 lbs |
78,2° |
| MA 35 mm/T1.9 | T1.9 to T22 | 0.75 m / 2'6" | 183 mm / 7.2" | 95 mm / 3.7" | 2.6 kg / 5.7 lbs | 65.5° |
| MA 40 mm/T1.9 | T1.9 to T22 | 0.70 m / 2'4" | 183 mm / 7.2" | 95 mm / 3.7" | 2.7 kg / 6.0 lbs | 58.7° |
| MA 50 mm/T1.9 | T1.9 to T22 | 0.75 m / 2'6" | 183 mm / 7.2" | 95 mm / 3.7" | 2.6 kg / 5.7 lbs | 48.5° |
| MA 60 mm/T1.9 | T1.9 to T22 | 0.90 m / 3' | 183 mm / 7.2" | 95 mm / 3.7" | 2.7 kg / 6.0 lbs | 41.1° |
| MA 75 mm/T1.9 | T1.9 to T22 | 0.90 m / 3' | 183 mm / 7.2" | 95 mm / 3.7" | 2.6 kg / 5.7 lbs | 33.4° |
| MA 100 mm/T1.9 | T1.9 to T22 | 0.95 m / 3'1'' | 210 mm / 8.3" | 95 mm / 3.7" | 3.1 kg / 6.8 lbs | 25.4° |
| MA 135 mm/T1.9 | T1.9 to T22 | 1.20 m / 3'11'' | 226 mm / 9.1" | 95 mm / 3.7" | 3.7 kg / 8.2 lbs | 18.9° |
| MA 180 mm/T 2.8 | T2.8 to T22 | 1.50 m / 5' | 226 mm / 9.1" | 95 mm / 3.7" | 3.2 kg / 7.1 lbs | 14,4° |
1) Close focus distance is measured from the image plane
2) Front to PL mount flange
3) Horizontal angle of view for a Super 35 Cinemascope camera (dimensions 22.5mm x 18.7 mm / 0.89“ x 0.74“)
Hier gehts zur Produktseite
Breathtaking.

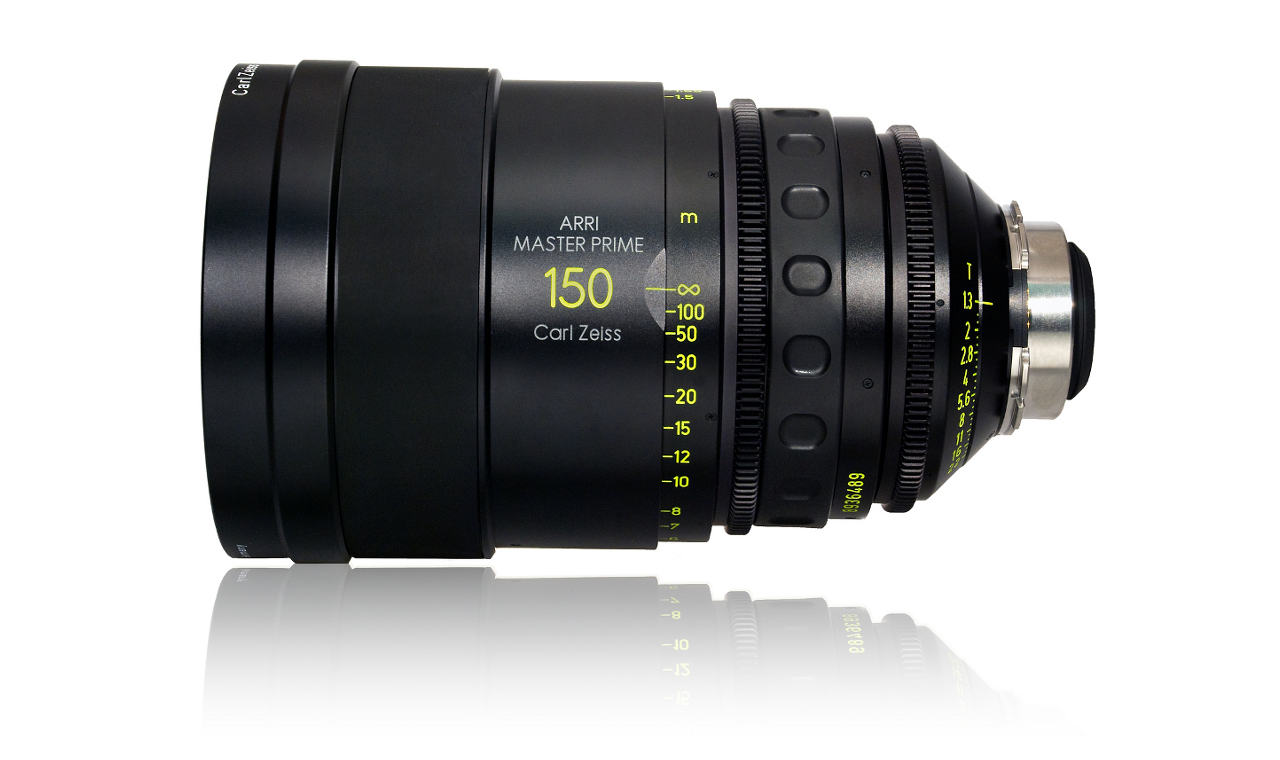

The Master Prime lenses have been jointly developed by ARRI and ZEISS. They are both fast and have an optical performance surpassing that of all standard speed primes. Master Prime lenses open up new creative opportunities of film making.
The Master Prime lenses open up new creative opportunities, making shots possible that would have been considered impossible before. A widest stop of T1.3 allows shooting in low or available light for more natural-looking shots and a reduction of the lighting budget. In addition, a wide open stop creates the cinematic look of an extremely shallow depth of field.
| Master Prime | Aperture | Close Focus1 | Length2 | Front diameter | Weight | AOV3 |
|---|---|---|---|---|---|---|
| MP 12 mm/T1.3 | T1.3 to T22 | 0.40 m / 16" | 197 mm / 7.76" | 156 mm / 6.1" | 2.9 kg / 6.4 lbs | 90.98° |
| MP 14 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 172 mm / 6.77" | 114 mm / 4.5" | 2.4 kg / 5.3 lbs | 83.44° |
| MP 16 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 153 mm / 6.02" | 114 mm / 4.5" | 2.2 kg / 4.8 lbs | 76.87° |
| MP 18 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 153 mm / 6.02" | 114 mm / 4.5" | 2.2 kg / 4.8 lbs | 70.53° |
| MP 21 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 153 mm / 6.02" | 114 mm / 4.5" | 2.4 kg / 5.3 lbs | 62.07° |
| MP 25 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 153 mm / 6.02" | 114 mm / 4.5" | 2.3 kg / 5.1 lbs | 53.72° |
| MP 27 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 153 mm / 6.02" | 114 mm / 4.5" | 2.2 kg / 4.8 lbs | 49.06° |
| MP 32 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 153 mm / 6.02" | 114 mm / 4.5" | 2.3 kg / 5.1 lbs | 43.51° |
| MP 35 mm/T1.3 | T1.3 to T22 | 0.35 m / 14" | 153 mm / 6.02" | 114 mm / 4.5" | 2.2 kg / 4.8 lbs | 39.33° |
| MP 40 mm/T1.3 | T1.3 to T22 | 0.40 m / 16" | 153 mm / 6.02" | 114 mm / 4.5" | 2.3 kg / 5.1 lbs | 34.73° |
| MP 50 mm/T1.3 | T1.3 to T22 | 0.50 m / 20" | 153 mm / 6.02" | 114 mm / 4.5" | 2.7 kg / 5.9 lbs | 28.26° |
| MP 65 mm/T1.3 | T1.3 to T22 | 0.65 m / 2'3" | 153 mm / 6.02" | 114 mm / 4.5" | 2.6 kg / 5.7 lbs | 21.59° |
| MP 75 mm/T1.3 | T1.3 to T22 | 0.80 m / 2'9" | 153 mm / 6.02" | 114 mm / 4.5" | 2.8 kg / 6.2 lbs | 18.82° |
| MP 100 mm/T1.3 | T1.3 to T22 | 1.00 m / 3'6" | 153 mm / 6.02" | 114 mm / 4.5" | 2.9 kg / 6.4 lbs | 14.25° |
| MP 135 mm/T1.3 | T1.3 to T22 | 0.95m / 3'3'' | 172 mm / 6.77" | 114 mm / 4.5" | 2.8 kg / 6.2 lbs | 10.73° |
| MP 150 mm/T1.3 | T1.3 to T22 | 1.50 m / 4'11" | 210 mm / 8.27" | 134 mm / 5.3" | 4 kg / 8.8 lbs | 9.65° |
1) Close focus distance is measured from the image plane
2) Front to PL mount flange
3) Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98“ x 0.74“)
Hier gehts zur Produktseite
Highest performance over the entire focusing range.
ARRI / ZEISS Ultra Prime Lenses have the widest focal range of prime lenses giving you the flexibility to get the coverage you want. The Ultra Prime lenses are lightweight standard speed lenses that are a perfect optical match to the high speed ARRI / ZEISS Master Prime lenses. They have been developed in a cooperation of ARRI and ZEISS.
16 high performance prime lenses offer the widest set available: from the Ultra Prime 8R extreme wide angle lens to the best telephoto lens designed specifically for motion pictures, the Ultra Prime 180 mm, giving you the flexibility to get the coverage you want.
| Ultra Prime | Aperture | Close Focus1 | Length2 | Front diameter | Weight | AOV3 |
|---|---|---|---|---|---|---|
| UP 8R/T2.8 | T2.8 to T22 | 0.35 m / 14" | 130 mm / 5.12" | 134 mm / 5.3" | 2.0 kg / 4.4 lbs | 114.0° |
| UP 10 mm/T2.1 | T2.1 to T22 | 0.35 m / 14" | 143 mm / 5.63" | 156 mm / 6.1" | 2.9 kg / 6.4 lbs | 102.1° |
| UP 12 mm/T2 | T2.0 to T22 | 0.30 m / 12" | 140 mm / 5.51" | 156 mm / 6.1" | 2.0 kg / 4.4 lbs | 92.6° |
| UP 14 mm/T1.9 | T1.9 to T22 | 0.22 m / 9" | 112 mm / 4.41" | 114 mm / 4.5" | 1.8 kg / 4.0 lbs | 82.6° |
| UP 16 mm/T1.9 | T1.9 to T22 | 0.25 m / 10" | 94 mm / 3.70" | 95 mm / 3.7" | 1.2 kg / 2.6 lbs | 75.2° |
| UP 20 mm/T1.9 | T1.9 to T22 | 0.28 m / 11" | 91 mm / 3.58" | 95 mm / 3.7" | 1.2 kg / 2.6 lbs | 65.0° |
| UP 24 mm/T1.9 | T1.9 to T22 |
0.3 m / 12" |
91 mm / 3.58" |
95 mm / 3.7" |
1.0 kg / 2.2 lbs |
55.8° |
| UP 28 mm/T1.9 |
T1.9 to T22 | 0.28 m / 11" | 91 mm / 3.58" | 95 mm / 3.7" | 1.0 kg / 2.2 lbs | 48.4° |
| UP 32 mm/T1.9 | T1.9 to T22 | 0.35 m / 14" | 91 mm / 3.58" | 95 mm / 3.7" | 1.1 kg / 2.4 lbs | 43.0° |
| UP 40 mm/T1.9 | T1.9 to T22 | 0.38 m / 15" | 91 mm / 3.58" | 95 mm / 3.7" | 1.0 kg / 2.2 lbs | 34.7° |
| UP 50 mm/T1.9 | T1.9 to T22 | 0.60 m / 2' | 91 mm / 3.58" | 95 mm / 3.7" | 1.0 kg / 2.2 lbs | 27.2° |
| UP 65 mm/T1.9 | T1.9 to T22 | 0.65 m / 2' 3" | 91 mm / 3.58" | 95 mm / 3.7" | 1.1 kg / 2.4 lbs | 21.8° |
| UP 85 mm/T1.9 | T1.9 to T22 | 0.90 m / 3' | 91 mm / 3.58" | 95 mm / 3.7" | 1.2 kg / 2.6 lbs | 17.1° |
| UP 100 mm/T1.9 | T1.9 to T22 | 1 m / 3'3" | 91 mm / 3.58" | 95 mm / 3.7" | 1.2 kg / 2.6 lbs | 13.9° |
| UP 135 mm/T1.9 | T1.9 to T22 | 1.5 m / 5' | 119 mm / 4.69" | 95 mm / 3.7" | 1.6 kg / 3.5 lbs | 10.5° |
| UP 180 mm/T1.9 | T1.9 to T22 | 2.6 m / 8'6" | 166 mm / 6.54" | 114 mm / 4.5" | 2.6 kg / 5.7 lbs | 7.9° |
1) Close focus distance is measured from the image plane
2) Front to PL mount flange
3) Horizontal angle of view for an ANSI Super 35 Silent camera (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98“ x 0.74“)
Hier gehts zur Produktseite
When you turn motion into emotion.
Being a filmmaker, every single shooting day awaits you with its individual, unforeseen challenges. Even if you plan your shoot carefully, unexpected moments are sometimes just what you need. It’s your ambition to capture our world’s unique, unreproducible moments. What could be more important to you than a powerful toolset?

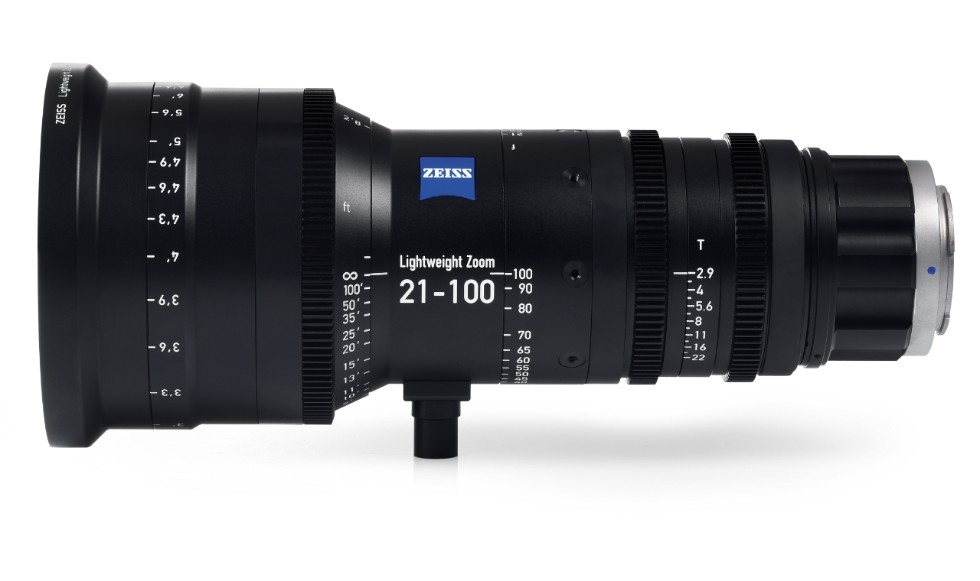

The new ZEISS Lightweight Zoom LWZ.3 21-100 mm/T2.9-3.9 T* zoom lens (ZEISS LWZ.3) offers you superior image performance in any imaginable shooting situation. Whether you’re shooting a film, commercial, corporate video, television drama, soap or high-end documentary under the most difficult conditions, the ZEISS LWZ.3 is a powerful, handy and trustworthy companion on the front of your camera.
16 high performance prime lenses offer the widest set available: from the Ultra Prime 8R extreme wide angle lens to the best telephoto lens designed specifically for motion pictures, the Ultra Prime 180 mm, giving you the flexibility to get the coverage you want.
Compact and lightweight design
The ZEISS LWZ.3 zoom lens is a robust and reliable featherweight in its class but nevertheless supporting you with superior performance at the same time. Whether you are shooting a short film, a soap opera, a feature film or a run-and-gun documentary - even in the most difficult conditions, the ZEISS LWZ.3 zoom lens is a trustworthy and powerful companion.
The look – made for professional cinema applications
An innovative and sophisticated lens design results in a tremendously lightweight lens, still accompanied by the outstanding optical performance you are familiar with using ZEISS lenses. Your shots will stand out with pin-sharp structures, vibrant colors and high contrast. Nicely shaped out-of-focus lights, a lovely bokeh and focus roll-off produce the desired cinematic look and feel of a scene. The shift of focus while zooming in and out, especially common with still photography zoom lenses, is no issue with the ZEISS LWZ.3.
Freedom even under harsh shooting conditions
On a bustling set you will definitely appreciate the cine-style ergonomics of the ZEISS LWZ.3. A rugged, splash-proof housing gives you enough freedom even in ambitious shooting conditions – both indoors and outdoors. Each ZEISS LWZ.3 has individually calibrated, smooth, continuously precise sca. The robust gears and fixed gear positions allow you to easily attach follow focus or wireless lens control systems.
A future-proof investment thanks to interchangeable mounts
The ZEISS LWZ.3 is equipped with an easy-to-operate, interchangeable mount system. It enables you to switch quickly from a typical cine-style PL-mount to four other mounts (Canon EF, Nikon F, Sony E, MFT)*. A truly great feature that promises a flexible and future-proof investment in today’s rapidly developing camera market.
One lens for all needs - a wide scope of usability
The focal length range between 21 and 100 mm supplies you with a wide scope of choosing the perfect angle and the ability of capturing a unique moment any second, without the time-consuming procedure of changing lenses.
