ZEISS Lenses for Large Format
Produkte
Opening up new dimensions.
Consistency is one of the key elements offered by the ZEISS Supreme Prime lenses: that means consistent coverage, color rendering, aperture, size, weight and ergonomics. All the lenses across the family cover full frame and even bigger sensors with an image circle of 46.3 mm. The Supreme Prime lenses are color matched across the full range and most feature a fast T-stop of T1.5.

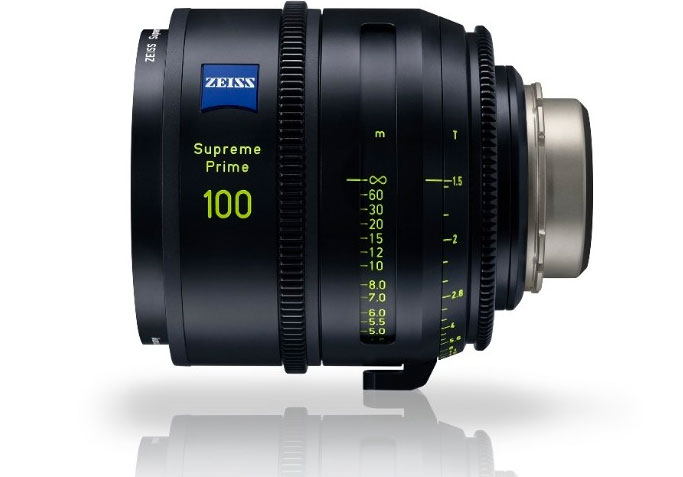

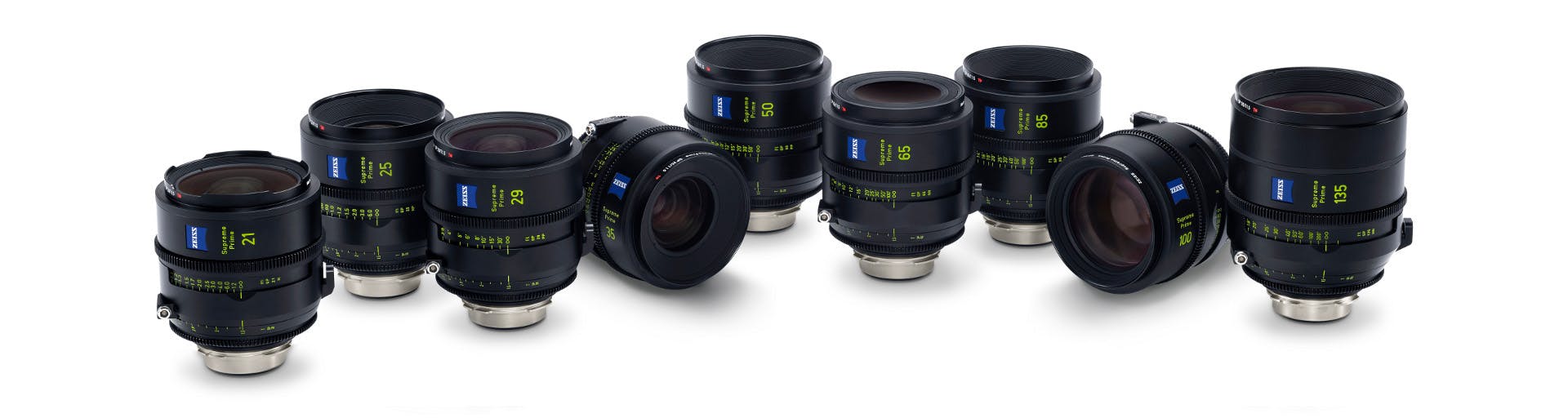

ZEISS Supreme Prime Lenses
The small front diameter of 95 mm on almost all lenses and standardized positioning of the focus and iris rings across the whole family facilitate fast and easy equipment changeout. The compact and lightweight design means you enjoy easy and comfortable handling. The ultra-smooth focus rotation of the Supreme Prime lenses even in extreme temperatures allows for small motors to make sure you have an easy setup that’s enjoyable to work with.
Technical Data
| Release | Aperture | Close Focus1 | Length2 | Front diameter | Weight | Horizontal Angle of View | ||
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
Full Frame 3 |
Super 35 4 |
Supreme Prime |
2020 |
T1.8 to T22 |
tbd |
tbd |
114 mm | 4.5‘‘ |
tbd |
tbd |
tbd |
Supreme Prime |
2020 |
T1.5 to T22 |
tbd |
163 mm | 6.4‘‘ |
114 mm | 4.5‘‘ |
tbd |
tbd |
tbd |
Supreme Prime |
Shipping |
T1.5 to T22 |
0.35 m | 13.7‘‘ |
120 mm | 4.7‘‘ |
95 mm | 3.7 |
1.61 kg | 3.55 lbs |
79.5° |
59.8° |
Supreme Prime |
Shipping |
T1.5 to T22 |
0.26 m | 10‘‘ |
119 mm | 4.7‘‘ |
95 mm | 3.7 |
1.42 kg | 3.13 lbs |
70.8° |
52.3° |
Supreme Prime |
Shipping |
T1.5 to T22 |
0.33 m | 13‘‘ |
121 mm | 4.8‘‘ |
95 mm | 3.7 |
1.61 kg | 3.55 lbs |
64° |
46.8° |
Supreme Prime |
Shipping |
T1.5 to T22 |
0.32 m | 13‘‘ |
119 mm | 4.7‘‘ |
95 mm | 3.7‘‘ |
1.40 kg | 3.09 lbs |
55° |
39.6° |
Supreme Prime |
Shipping |
T1.5 to T22 |
0.45 m | 18‘‘ |
119 mm | 4.7‘‘ |
95 mm | 3.7‘‘ |
1.22 kg | 2.69 lbs |
39° |
27.5° |
Supreme Prime |
Shipping |
T1.5 to T22 |
0.6 m | 2‘ |
121 mm | 4.8‘‘ |
95 mm | 3.7‘‘ |
1.63 kg | 3.59 lbs |
30.5° |
21.3° |
Supreme Prime |
Shipping |
T1.5 to T22 |
0.84 m | 2‘9‘‘ |
119 mm | 4.7‘‘ |
95 mm | 3.7‘‘ |
1.42 kg | 3.13 lbs |
24° |
16.7° |
Supreme Prime |
Shipping |
T1.5 to T22 |
1.1 m | 3‘9‘‘ |
119 mm | 4.7‘‘ |
95 mm | 3.7‘‘ |
1.7 kg | 3.74 lbs |
20.4° |
14.2° |
Supreme Prime |
Shipping |
T1.5 to T22 |
1.35 m | 4‘5‘‘ |
146 mm | 5.7’’ |
114 mm | 4.5‘‘ |
2.27 kg | 5.00 lbs |
15.6° |
10.9° |
Supreme Prime |
Q4 |
T1.8 to T22 |
1.5 m | 4’11 |
146 mm | 5.7’’ |
114 mm | 4.5‘‘ |
2.27 kg | 5.00 lbs |
13.7° |
9.5° |
Supreme Prime |
2020 |
T2.2 to T22 |
2 m | 6‘7‘‘ |
183 mm | 7.2’’ |
114 mm | 4.5‘‘ |
tbd |
6.28° |
4.76° |
1 Close focus distance is measured from the image plane
2 Front to PL mount flange
3 Horizontal angle of view for a full-frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42“ x 0.94“)
4 Horizontal angle of view for an ANSI Super 35 Silent camera (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98“ x 0.74“)
Hier gehts zur Produktseite

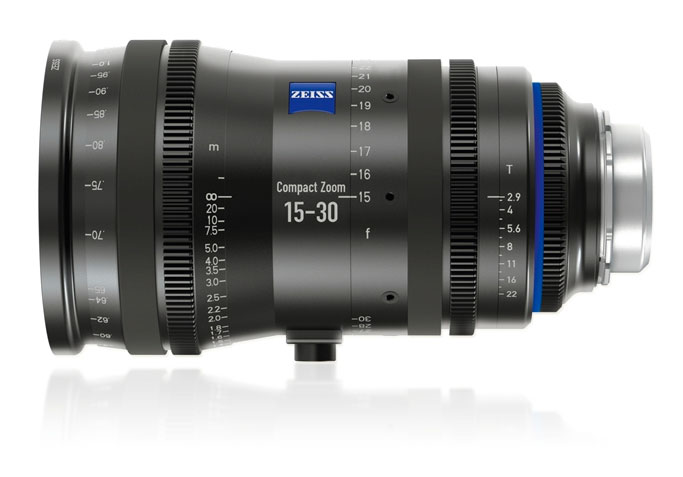

High-performance cine zoom lenses that make the most of the moment.
The ZEISS Cinema Zoom lenses deliver great flexibility thanks to interchangeable mounts, allowing them to be used with a wide range of cameras from multiple manufacturers. There is a comprehensive choice of cinema zooms with consistent aperture, good sharpness and contrast, minimal distortion and a look that matches the highest quality cinema primes including ZEISS/ARRI lenses. Affordable, flexible and offering the highest quality, the ZEISS Cinema Zoom lenses are an invaluable addition to any film set.
ZEISS Cinema Zoom lenses are precision engineered within the tightest possible tolerances. This guarantees you excellent image quality with low distortion, high resolution and excellent color rendition for sharp, punchy pictures.
| Cinema Zoom 15 - 30 mm |
Cinema Zoom 28 - 80 mm | Cinema Zoom 70 - 200 mm | |
|---|---|---|---|
| Aperture range | T 2.9 to T 22 | T 2.9 to T 22 | T 2.9 to T 22 |
| Focal range | 15 – 30 mm | 28 – 80 mm | 70 – 200 mm |
| Close focus distance1 | 0.55 m / 1'10" | 0.83 m / 2'8" | 1.52 m / 5' |
| Length2 | 198 mm / 9.92" | 196 mm / 7.72" | 250 mm / 9.84" |
| Front diameter | 114 mm / 4.49" | 95 mm / 3.7" | 95 mm / 3.7" |
| Weight | 2.6 kg / 5.7 lbs | 2.5 kg / 5.5 lbs | 2.8 kg / 6.2 lbs |
| Horizontal angle of view | |||
| Full-Frame3 | 100 - 62° | 66 - 25° | 29 - 10° |
| APS-H4 | 90 - 54° | 57 - 21° | 24 - 9° |
| Super 355 | 79 - 46° | 48 - 18° | 20 - 7° |
| Normal 356 | 72 - 41° | 43 - 16° | 18 - 6° |
| APS-C7 | 73 - 42° | 43 - 16° | 18 - 6° |
| MFT8 | 59 - 33° | 34 - 12° | 14 - 5° |
1) Close focus distance is measured from the image plane
2) Front to PL mount flange
3) Horizontal angle of view for a full-frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42“ x 0.94“)
4) Horizontal angle of view for an APS-H camera (aspect ratio 1:1.81, dimensions 30.2 mm x 16.7 mm / 1.19“ x 0.66“)
5) Horizontal angle of view for an ANSI Super 35 Silent camera (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98“ x 0.74“)
6) Horizontal angle of view for a Normal 35 Academy camera (aspect ratio 1:1.37, dimensions 22 mm x 16 mm / 0.87“ x 0.63“)
7) Horizontal angle of view for an APS-C camera (aspect ratio 1:1.50, dimensions 22.3 mm x 14.9 mm / 0.88“ x 0.59“)
8) Horizontal angle of view for a Micro 4/3 (MFT) camera (aspect ratio 1:1.33, dimensions 17.3 mm x 13 mm / 0.68“ x 0.51“)
Hier gehts zur Produktseite

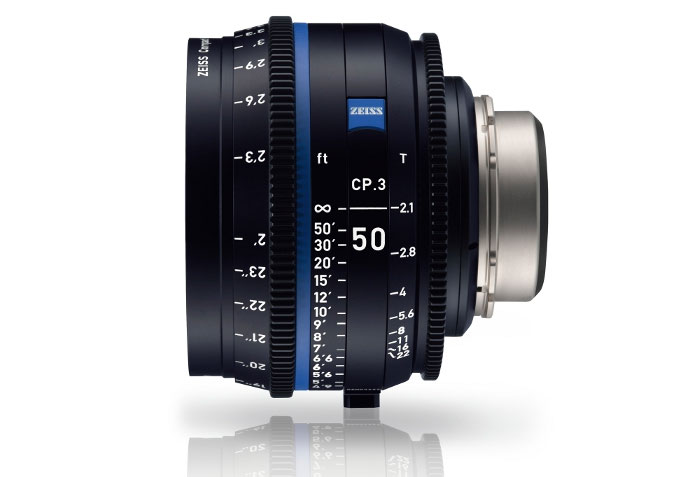

Tailored for today’s cinema and beyond.
Digital technologies have transformed traditional filmmaking and refashioned the market. New and innovative technologies in both production and post-production have paved the way for a more versatile, cost effective and advanced workflow. The ZEISS CP.3 family is the latest contribution from ZEISS to support creative and progressive filmmaking with an affordable, future-proof and premium quality lens set.
The ZEISS CP.3 lenses offer the perfect combination of high image quality and reliable usability. They exhibit the clean, crisp characteristics ZEISS is known for, together with an interchangeable mount system and full-frame coverage.
The ZEISS CP.3 XD version features innovative and ground-breaking lens data technology to speed-up and simplify the workflow on set and in post-production.
The ZEISS eXtended Data is a unique technology which is based on the
/i* Technology and provides information about the lens’ distortion and shading characteristics in real time. With the ZEISS CP.3 XD lenses, even small productions on a limited budget gain access to the advanced techniques common in state-of-the-art, big budget films, commercials and television shows.
True cine look
Ranging from 15 mm to 135 mm, the ten focal lengths available in the ZEISS Compact Prime CP.3 or CP.3 XD series cover all applications from wide-angle to telephoto. The ZEISS CP.3 lenses feature advanced lens coatings, painted lens rims and special light traps within the barrel to eliminate unwelcome veiling glare and flares. The result is higher contrast, richer blacks and more saturated colors.
New ZEISS eXtended Data technology
The ZEISS eXtended Data technology adds new opportunities to simplify and increase the accuracy of the image capture and processing workflow. ZEISS eXtended Data unifies two data sets: key lens data based on the open /i* Technology standard and supported by a wide range of cameras and accessories, plus ZEISS specific lens data that contains precise lens characteristics.
Ultimate cine ergonomics
The ZEISS CP.3 lenses are a professional toolset that simplifies your work on set. They are easy to handle, allow for fast changeover of equipment and give you great creative freedom to make your ideas come to life.
Compactness redefined
The compact and light-weight design enables you to use different stabilizing systems and to have a compact camera setup that is ideal for shooting in narrow spaces and for capturing dynamic shots.
