Angenieux Optimo Spherical

E-Mail
Spherical Lenses
Stellen Sie eine Frage zu diesem Produkt
Beschreibung

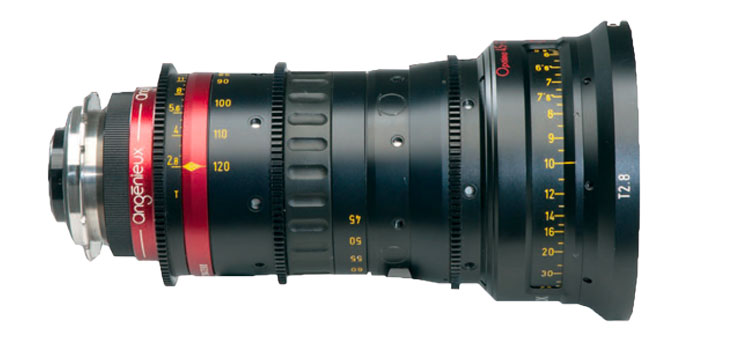

Optimo 45‑120

Telephoto Compact Spherical Zoom Lens


OPTIMO LIGHTWEIGHT LENSES: AGILITY & QUALITY BALANCED AT AN UNPRECEDENTED LEVEL

Our line of Optimo lightweight hand-held zoom lenses – including the 15-40mm, 28-76mm, and 45-120mm – offers a superb balance between quality and agility. They are the lightest and the most compact series of cine zoom lenses in the industry and are perfectly suited for shootings requiring modern, lightweight and compact digital cameras and Steadicam work.

MAIN FEATURES

  • Superb image quality from T2.8 open aperture
  • Compact and very light (1.9 kg / 4.3lbs)
  • Identical center of gravity on all Optimo lightweight zoom lenses enable quick lens interchange
  • Perfect homogeneity of color, contrast and resolution. Low distortion
  • No ramping, minimal breathing, very fast for 2.7x zoom ratios
  • Internal focus, internal zoom, constant lens volume
  • Precise and ergonomic focus ring with scale rotation of 320 degrees & over 50 focus marks.
  • Interchangeable focus scale ring from feet to meters
  • Adapted to extreme production environments (back focus temperature compensation system from -20°C to +45°C)
  • Compatible with Optimo 1.4x and 2x extenders
  • 63-168mm T4 (with 1.4x extender)
  • 90-240mm T5.6 (with 2x extender)
  • Image coverage: S35+ (Ø 33.34 mm), expands to Ø 35 mm when used with Optimo extenders (more info in DOWNLOAD section)
  • Available in PL mount. Easily interchangeable to Panavision, Canon EF mounts
  • Compatible with ASU servo unit (integrated motors for FTZ remote control through industry standard control systems)

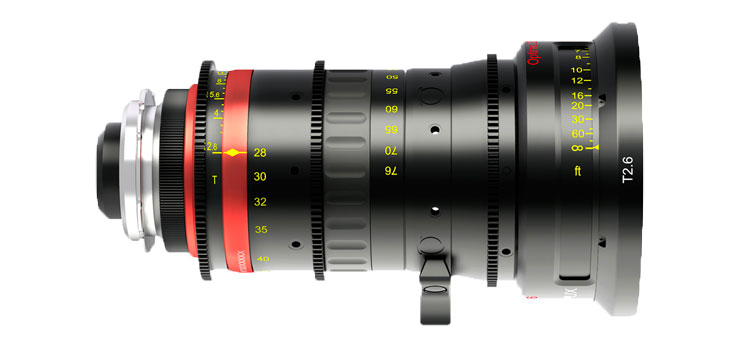

Optimo 28‑76

Standard Compact Spherical Zoom Lens


OPTIMO LIGHTWEIGHT LENSES: AGILITY & QUALITY BALANCED AT AN UNPRECEDENTED LEVEL

Our line of Optimo lightweight hand-held zoom lenses – including the 15-40mm, 28-76mm, and 45-120mm – provide superb balance between quality and agility. Being one of the lightest and most compact series of cine style zoom lenses in the industry, these lenses are perfectly suited for use with modern light weight digital cameras on Steadicam or hand-held.

MAIN FEATURES

  • Superb image quality from T2.6 open aperture
  • Compact and very light (1.92 kg / 4.2lbs)
  • Identical center of gravity on all Optimo lightweight zoom lenses enable quick lens interchange
  • Perfect homogeneity of color, contrast and resolution. Low distortion
  • No ramping, minimal breathing, very fast for 2.7x zoom ratios
  • Close focus of (2ft / 0.6m) enables extreme close-up shots
  • Internal focus, internal zoom, constant lens volume
  • Precise and ergonomic focus ring with scale rotation of 320 degrees & over 50 focus marks.
  • Interchangeable focus scale ring from feet to meters
  • Adapted to extreme production environments (back focus temperature compensation system from -20°C to +45°C)
  • Compatible with Optimo 1.4x and 2x extenders
  • 40-110mm T3.7 (with 1.4x)
  • 56-152mm T5.2 (with 2x)
  • Image coverage: S35+ (Ø 31.4 mm), expands to Ø 35 mm when used with Optimo extenders (more info in DOWNLOAD section)
  • Available in PL mount. Easily interchangeable to Panavision, Canon EF, mounts
  • Compatible with ASU servo unit (integrated motors for FTZ remote control through industry standard control systems)

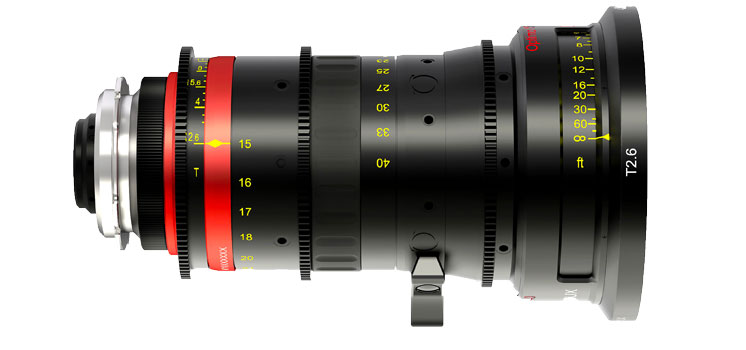

Optimo 15‑40

Wide Angle Compact Spherical Zoom Lens


OPTIMO LIGHTWEIGHT LENSES: AGILITY & QUALITY BALANCED AT AN UNPRECEDENTED LEVEL

Our line of Optimo lightweight hand-held zoom lenses – including the 15-40mm, 28-76mm, and 45-120mm – offers a superb balance between quality and agility. They are the lightest and the most compact series of cine zoom lenses in the industry and are perfectly suited for shootings requiring modern, lightweight and compact digital cameras and Steadicam work.

MAIN FEATURES

  • Superb image quality from T2.6 open aperture
  • Compact and very light (1.92 kg / 4.2lbs)
  • Identical center of gravity on all Optimo lightweight zoom lenses enable quick lens interchange
  • Perfect homogeneity of color, contrast and resolution. Low distortion
  • No ramping, minimal breathing, very fast for 2.7x zoom ratios
  • Close focus of (2ft / 0.6m) facilitates shooting in tight locations
  • Internal focus, internal zoom, constant lens volume
  • Precise and ergonomic focus ring with scale rotation of 320 degrees & over 50 focus marks.
  • Interchangeable focus scale ring from feet to meters
  • Adapted to extreme production environments (back focus temperature compensation system from -20°C to +45°C)
  • Compatible with Optimo 1.4x and 2x extenders
  • 21-58mm T3.7 (with 1.4x)
  • 30-80mm T5.2 (with 2x)
  • Image coverage: S35+ (Ø 31.4 mm), expanded to Ø 35 mm when used with Optimo extenders (more info in DOWNLOAD section)
  • Available in PL mount. Easily interchangeable to Panavision, Canon EF, mounts
  • Compatible with ASU servo unit (integrated motors for FTZ remote control through industry standard control systems)

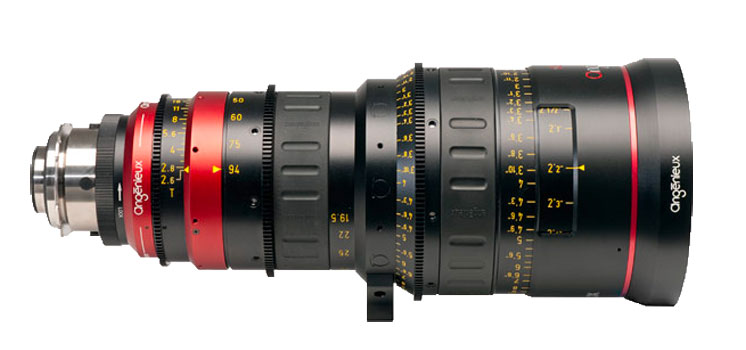

Optimo 19.5‑94

Wide Angle Spherical Zoom Lens with Large Imaging Size


OPTIMO LONG LENSES: THE INDUSTRY’S REFERENCE STUDIO ZOOM LENSES

Setting the standard for optics technology and performance, the Optimo line offers a range of zoom lenses to meet the most uncompromising requirements. Manufactured with exquisite precision, they help you bring greater artistry and cinematic expression to your production in any format. The Optimo long lenses are unrivaled as the industry’s reference lenses for every type of production from feature films, commercials, TV series and video clips to major sports events and concerts.

MAIN FEATURES

  • Enhanced version of the former Optimo 17-80 with larger image circle and longer focal length
  • Ideal companion to the industry reference Optimo 12x zooms
  • Superb image quality from T2.6 open aperture, considered as “variable prime”
  • Perfect homogeneity of color, contrast and resolution
  • Low distortion. No ramping, minimal breathing
  • Internal focus, Internal zoom no change in lens size
  • Precise and ergonomic focus ring with scale rotation of 329 degrees, 50 focus marks
  • Interchangeable focus scale ring from feet to meters
  • Sophisticated yet robust focusing architecture offers close focus of 0.62m/2 ft -0.5 in
  • Adapted to extreme production environments (back focus temperature compensation system from -20°C to +45°C)
  • Compatible with Optimo 1.4x and 2x extenders
  • 27-131mm T3.7 (with 1.4x extender)
  • 39-188mm T5.2 (with 2x extender)
  • Image coverage: S35+ (Ø 31.4 mm), expands to Ø 35 mm when used with Optimo extenders (more info in DOWNLOAD section)
  • Available in PL mount. Interchangeable to Panavision mount by factory trained engineers

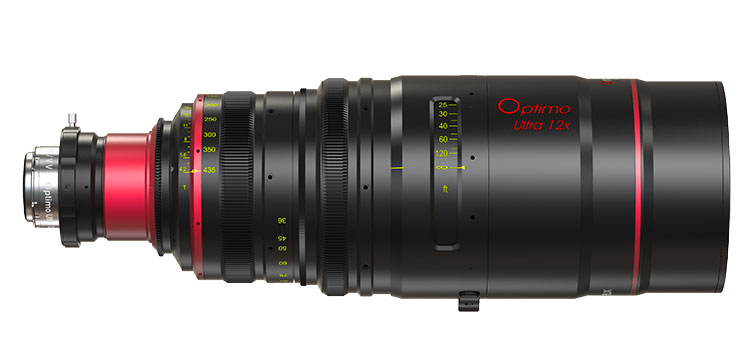

Optimo Ultra 12x FF/VV

The long-range cinema zoom reference redefined


OPTIMO LONG LENSES: THE INDUSTRY’S REFERENCE STUDIO ZOOM LENSES

The New Generation High End 12x Cine Zoom

Successor model to industry reference OPTIMO 24-290 & 28-340, the Optimo Ultra 12x is the ideal long-range zoom for high-end productions: feature films, TV series, live stage, commercials, music videos. The lens features a totally new optical & mechanical design, offering even better optical performance, and improved mechanical stability and serviceability.

Thanks to the IRO technology®, the lens can be configured in three different versions: S35 (Ø 31.1mm), U35 (Ø 34.6mm) and FF/VV (Ø 46.3mm) with dedicated sets of rear and rings.

Main Features

New Optical Design

  • Completely new optical design to enable Full Frame Coverage
  • Well controlled optical performances at each focal length and focus distance by having a good balance between contrast and resolution –appealing cinematic look
  • Superb image quality from open aperture, considered as “variable primes”
  • Low distortion
  • No ramping, minimal breathing, very fast for 12x zoom ratios
  • Efficient use of aspherical elements to minimize color fringing
  • Very short MOD 1.22m/4’1’’ in S35 – 1.24m/4’1’’ in Ultra S35 – 4’2″ in FF/VV


New Mechanical Design

  • Completely newly designed mechanics vs. 24-290 & 28-340
  • Improved mechanical stability, and serviceability.
  • Weight reduction of moving components
  • Reduce dust inhale by improving air flow and adding dust traps
  • Precise and ergonomic focus ring with scale rotation of 321 degrees, the largest in the industry and over 70 focus marks.
  • User changeable focus marking rings (focusing scales available in feet or metric)
  • Mechanical components based on light-weight material with dedicated anti-abrasion coating
  • Adapted to extreme shooting environments (passive athermalisation from -20°C to +40°C)
  • PL mount lens. Compatible with LPL mount. Additional lens mounts to come
  • Available accessories: carrying handle, front protective glass, Optimo extenders


Multiple Image Format Design

Two packages available

  • ZoomS35 + U35 kit ( Standard Optimo Ultra 12X U35 package)
  • ZoomS35 + U35 kit + FF/VV kit (Full Optimo Ultra 12X FF/VV package)

Optimo Ultra 12x U35

The long-range cinema zoom reference redefined


The New Generation High End 12x Cine Zoom

Successor model to industry reference OPTIMO 24-290 & 28-340, the Optimo Ultra 12x is the ideal long-range zoom for high-end productions: feature films, TV series, live stage, commercials, music videos. The lens features a totally new optical & mechanical design, offering even better optical performance, and improved mechanical stability and serviceability.

Thanks to the IRO technology®, the lens can be configured in three different versions: S35 (Ø 31.1mm), U35 (Ø 34.6mm) and FF/VV (Ø 46.3mm) with dedicated sets of rear and rings.

Main Features

New Optical Design

  • Completely new optical design to enable Full Frame Coverage
  • Well controlled optical performances at each focal length and focus distance by having a good balance between contrast and resolution –appealing cinematic look
  • Superb image quality from open aperture, considered as “variable primes”
  • Low distortion
  • No ramping, minimal breathing, very fast for 12x zoom ratios
  • Efficient use of aspherical elements to minimize color fringing
  • Very short MOD 1.22m/4’1’’ in S35 – 1.24m/4’1’’ in Ultra S35 – lower or equal to 1.5m /5’ in FF/VV
New Mechanical Design

  • Completely newly designed mechanics vs. 24-290 & 28-340
  • Improved mechanical stability, and serviceability.
  • Weight reduction of moving components
  • Reduce dust inhale by improving air flow and adding dust traps
  • Precise and ergonomic focus ring with scale rotation of 321 degrees, the largest in the industry and over 70 focus marks.
  • User changeable focus marking rings (focusing scales available in feet or metric)
  • Mechanical components based on light-weight material with dedicated anti-abrasion coating
  • Adapted to extreme shooting environments (passive athermalisation from -20°C to +40°C)
  • PL mount lens. Compatible with LPL mount. Additional lens mounts to come
  • Available accessories: carrying handle, front protective glass, Optimo extenders
Multiple Image Format Design

Two packages available

  • ZoomS35 + U35 kit ( Standard Optimo Ultra 12X U35 package)
  • ZoomS35 + U35 kit + FF/VV kit (Full Optimo Ultra 12X FF/VV package)

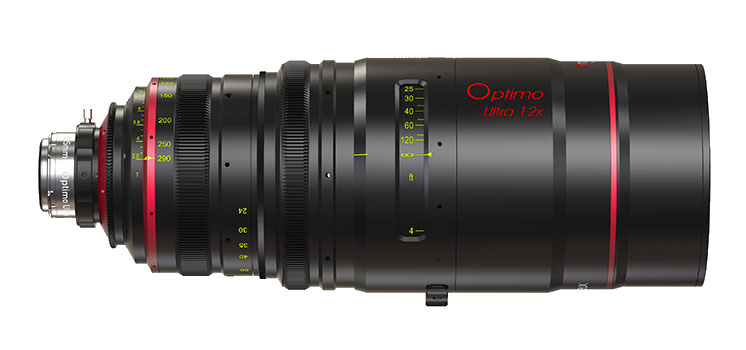

Optimo Ultra 12x S35

he long-range cinema zoom reference redefined


The New Generation High End 12x Cine Zoom

Successor model to industry reference OPTIMO 24-290 & 28-340, the Optimo Ultra 12x is the ideal long-range zoom for high-end productions: feature films, TV series, live stage, commercials, music videos. The lens features a totally new optical & mechanical design, offering even better optical performance, and improved mechanical stability and serviceability.

Thanks to the IRO technology®, the lens can be configured in three different versions: S35 (Ø 31.1mm), U35 (Ø 34.6mm) and FF/VV (Ø 46.3mm) with dedicated sets of rear and rings.

Main Features

New Optical Design

  • Completely new optical design to enable Full Frame Coverage
  • Well controlled optical performances at each focal length and focus distance by having a good balance between contrast and resolution –appealing cinematic look
  • Superb image quality from open aperture, considered as “variable primes”
  • Low distortion
  • No ramping, minimal breathing, very fast for 12x zoom ratios
  • Efficient use of aspherical elements to minimize color fringing
  • Very short MOD 1.22m/4’1’’ in S35 – 1.24m/4’1’’ in Ultra S35 – lower or equal to 1.5m /5’ in FF/VV
New Mechanical Design

  • Completely newly designed mechanics vs. 24-290 & 28-340
  • Improved mechanical stability, and serviceability.
  • Weight reduction of moving components
  • Reduce dust inhale by improving air flow and adding dust traps
  • Precise and ergonomic focus ring with scale rotation of 321 degrees, the largest in the industry and over 70 focus marks.
  • User changeable focus marking rings (focusing scales available in feet or metric)
  • Mechanical components based on light-weight material with dedicated anti-abrasion coating
  • Adapted to extreme shooting environments (passive athermalisation from -20°C to +40°C)
  • PL mount lens. Compatible with LPL mount. Additional lens mounts to come
  • Available accessories: carrying handle, front protective glass, Optimo extenders
Multiple Image Format Design

Two packages available

  • ZoomS35 + U35 kit ( Standard Optimo Ultra 12X U35 package)
  • ZoomS35 + U35 kit + FF/VV kit (Full Optimo Ultra 12X FF/VV package)
