Angenieux Type EZ Series

innovative lens modular design

Stellen Sie eine Frage zu diesem Produkt

Beschreibung

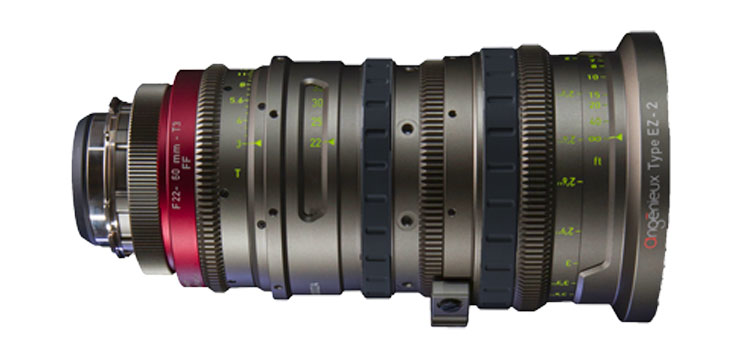

Type EZ-2 FF/VistaVision (Wide)

22-60mm / T3

The Angénieux Type EZ-2 for FF/VistaVision format is a wide zoom lens with a zoom factor of 2.7x. Its focal range and aperture are set set to 22-60mm F2.8/T3. By exchanging the rear lens group, the lens becomes a 15-40mm F1.9/T2 covering an image circle up to 30mm diagonal.

MAIN FEATURES

available in pack offer only (Type EZ-2 S35 PL + FF/Vistavison rear)
22-60mm T3 / f2.8, image coverage up to 46mm diagonal
Lightweight (2,070g / 4.6 pounds)
Extremely wide coverage with minimal distortion
Internal focusing & zooming, lens size remains constant throughout zooming & focusing range.
Traditional angenieux look, colorimetry matches those of Optimo & OPTIMO STYLE series.
Short MOD 0.6m / 2 feet
In-lens thermal compensation, significantly reduces temperature drift.
Precise and ergonomic focus ring with scale rotation of 300 degrees
Luminescent FTZ markings, easy reading in dark
Available with PL lens mount, easy conversion to EF or E mount by users
Front diameter 114mm, matte boxes compatible with those used on OPTIMO & OPTIMO STYLE compact zooms
Detachable ENG style zoom grip available from MOVCAM

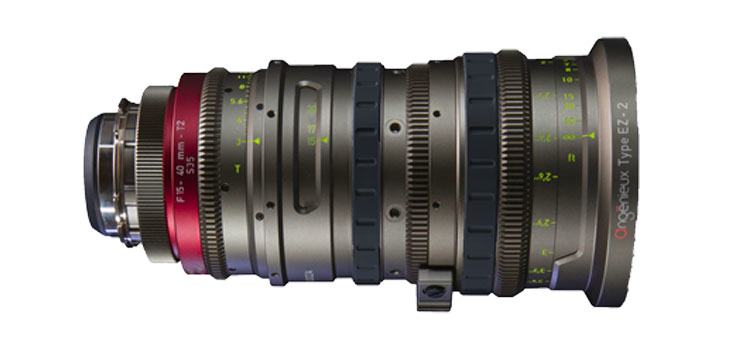

Type EZ-2 S35 (Wide)

15-40mm / T2

The Angénieux Type EZ-2 for S35mm cameras is a wide zoom lens with a zoom factor of 2.7x. Its focal range and aperture are set to 15-40mm F1.9/T2. By exchanging the rear lens group, the lens becomes a 22-60mm F2.8/T3 covering an image circle up to 46mm diagonal.

MAIN FEATURES

15-40mm T2 / f1.9, image coverage up to 30mm diagonal
Extremely fast T2 across zoom range with no ramping
Lightweight (2,120g / 4.6 pounds)
Extremely wide coverage with minimal distortion
Internal focusing & zooming, lens size remains constant throughout zooming & focusing range.
Traditional angenieux look, colorimetry matches those of Optimo & OPTIMO STYLE series.
Short MOD 0.6m / 2 feet
In-lens thermal compensation, significantly reduces temperature drift.
Precise and ergonomic focus ring with scale rotation of 300 degrees
Luminescent FTZ markings, easy reading in dark
Available with PL lens mount, easy conversion to EF or E mount by users
Front diameter 114mm, matte boxes compatible with those used on OPTIMO & OPTIMO STYLE compact zooms
Detachable ENG style zoom grip available from MOVCAM

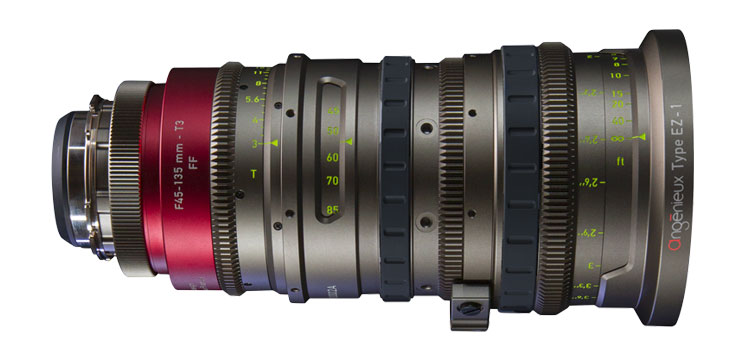

Type EZ-1 FF/VistaVision (Standard)

45-135mm/T3

The Angénieux Type EZ 1 for FF/VistaVision format is a standard zoom lens with a zoom factor of 3x. Its focal range and aperture are set to 45-135mm F2.8/T3, covering an image circle up to 46mm diagonal. By exchanging the rear lens group, the lens becomes a 30-90mm F21.9/T2 for S35mm format, covering an image circle up to 30mm diagonal.

MAIN FEATURES

available in pack offer only (Type EZ-1 S35 PL+ FF/Vistavision rear)
45-135mm T3 / f2.8, image coverage up to 46mm diagonal
Lightweight (2,050g / 4.5 pounds)
Internal focusing & zooming, lens size remains constant throughout zooming & focusing range.
Traditional angenieux look, colorimetry matches those of Optimo & OPTIMO STYLE series.
Short MOD 0.6m / 2 feet
In-lens thermal compensation, significantly reduces temperature drift.
Precise and ergonomic focus ring with scale rotation of 300 degrees
Luminescent FTZ markings, easy reading in dark
Available with PL lens mount, easy conversion to EF or E mount by users
Front diameter 114mm, matte boxes compatible with those used on OPTIMO & OPTIMO STYLE compact zooms
Detachable ENG style zoom grip available from MOVCAM

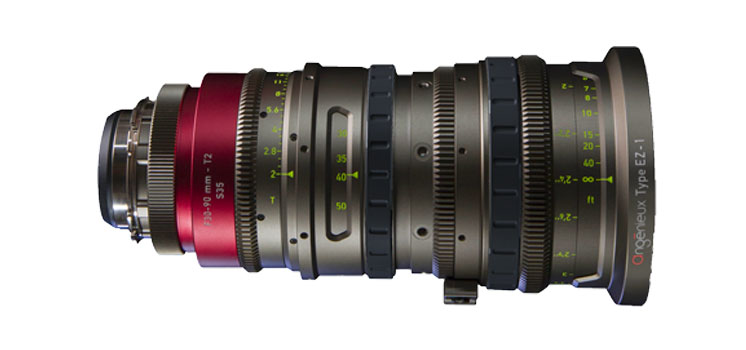

Type EZ-1 S35 (Standard)

30-90mm/ T2

The Angénieux Type EZ-1 for S35mm cameras is a standard zoom lens with a zoom factor of 3x. Its focal range and aperture are set to 30-90mm F1.9/T2. By exchanging the rear lens group, the lens becomes a 45-135mm F2.8/T3 for FF/VistaVision format covering an image circle up to 46mm diagonal.

MAIN FEATURES

30-90mm T2 / f1.9, image coverage up to 30mm diagonal
Extremely fast T2 across zoom range with no ramping
Lightweight (2,150g / 4.7 pounds)
Internal focusing & zooming, lens size remains constant throughout zooming & focusing range.
Traditional angenieux look, colorimetry matches those of Optimo & OPTIMO STYLE series.
Short MOD 0.6m / 2 feet
In-lens thermal compensation, significantly reduces temperature drift.
Precise and ergonomic focus ring with scale rotation of 300 degrees
Luminescent FTZ markings, easy reading in dark
Available with PL lens mount, easy conversion to EF or E mount by users
Front diameter 114mm, matte boxes compatible with those used on OPTIMO & OPTIMO STYLE compact zooms
Detachable ENG style zoom grip available from MOVCAM
